Introduction by Example

We shortly introduce usage basics of AMPy through several self-contained examples. Up to this momemnt, you can follow this tutorial in the format of Colab Notebook or check out attached video (TBD).

Essentially, AMPy allows you to perform the following processing procedures:

Extract Kinematics from Raw Video

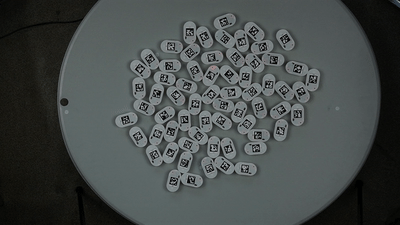

We will show a simple example of extracting trajectories from the predefined video:

To extract the robots’ trajectories from the video, we import the Processor class from ampy.processing and create the corresponding object:

from ampy.processing import Processor

VP = Processor()

Then we pass the videofile path using set_filename method:

filename = 'test_video.mp4'
VP.set_filename(filename)

From this moment we can extract system’s Cartesian kinematics by the cartesian_kinamatics function:

cart_kin = VP.cartesian_kinematics(bots_number=65,
                                    begin_frame=120,
                                    end_frame=1800,
                                    get_each=5,
                                    ignore_codes=(),
                                    scale_parameters=(1, 0))

We can see that this method holds 6 parameters: bots_number is a number of tracking objects presented in the video; begin_frame and end_frame describe a start/stop frames for kinematics extraction; get_each sets frames decimation frequency (to speed up the execution); ignore_codes is a list of markers’ ids which are not considered during the tracking; scale_parameters correspond to the α and β parameters of a frame linear transformation (adjustable contrast and brightness parameters).

To extract the polar representation of kinematics, you should provide the coordinates of the field center. This can be done automatically using field_center_auto if you place additional markers on the area’s borders. Otherwise, we can set it up manually:

center = (1920 // 2, 1080 // 2)

polar_kin = VP.polar_kinematics(cartesian_kinematics=cart_kin,
                                field_center=center)

In some cases, it can be beneficial to convert linear distances from pixels to centimeters. Scaling factor of such transformation can be obtained via metric_constant with respect to the size of ArUco markers:

marker_size = 3 # in centimeters

scaling_factor = VP.metric_constant(marker_size=marker_size, scale_parameters=(1, 0))

Note

If you are lucky to have your own tracking software, you can still use AMPy to evaluate various statistical characteristics. In order to do that, it is required to convert your data to the following format (per frame): [object_id, orientation_angle, object_center_coordinate].

Evaluate Group Dynamics

Module statistics2d allows you to evaluate several characeristics represented in the form of temporal dependencies.

• The one can obtain mean displaiments of robots from the center by the means of the mean_distance_from_center function:

from ampy.statistics2d import mean_distance_from_center

distance = mean_distance_from_center(kinematics=polar_kin)

• Mean polar angle of robots in the system can be calculated via mean_polar_angle:

from ampy.statistics2d import mean_polar_angle

angle = mean_polar_angle(kinematics=polar_kin)

• On top of that, you can evaluate mean polar angle in sense of the angular path using mean_polar_angle_absolute:

from ampy.statistics2d import mean_polar_angle_absolute

angle_abs = mean_polar_angle_absolute(kinematics=polar_kin)

• Mean squared distance (to the center of the field) can be evaluated by the mean_cartesian_displacements function:

from ampy.statistics2d import mean_cartesian_displacements

cart_disp = mean_cartesian_displacements(kinematics=cart_kin)

• In order to check whether system’s configuration corresponds to some regular lattice, you can apply bond_orientation with the order parameter neighbours_number:

from ampy.statistics2d import bond_orientation

boo = bond_orientation(kinematics=cart_kin, neighbours_number=6, folds_number=6)

• Spatio-temporal correlation of the system can be evaluated by the chi_4 function:

from ampy.statistics2d import chi_4
from multiprocessing import Pool
import os

data = []
for time in time:
        data.append((cart_kin, time, 100))

with Pool(os.cpu_count()) as pool:
        stcp = pool.starmap(chi_4, data)

• Clustering coefficient of the system can be obtained by the cluster_dynamics function:

from ampy.statistics2d import cluster_dynamics

cl_coeff = cluster_dynamics(kinematics=cart_kin)

This function has an optional parameter collide_function specifying collision rules for robots.

• Correlations between robots positions, orientations and velocities can be evaluated by the following functions: position_correlation, orientation_corrilation, and velocity_correlation. For simplicity, we will evaluate them in the 400x400 window:

from ampy.statistics3d import position_correlation, orientation_correlation, velocity_correlation

pos_corr = position_correlation(kinematics=cart_kin, x_size=200, y_size=200)

orient_corr = orientation_correlation(kinematics=cart_kin, x_size=200, y_size=200)

vel_corr = velocity_correlation(kinematics=cart_kin, x_size=200, y_size=200)

To provide better visual summary, you may average correlation maps for all processed frames:

pos_corr = np.mean(np.array(pos_corr), axis=0)
orient_corr = np.mean(np.array(orient_corr), axis=0)
vel_corr = np.mean(np.array(vel_corr), axis=0)
